The RO-STOP device
The RO-STOP device ensures extremely easy handling, as it allows the choice of the connected port even after the installation of the valve.
In case of actuation dismantling, markings on the stem top show the popition of the ball (connected ports)

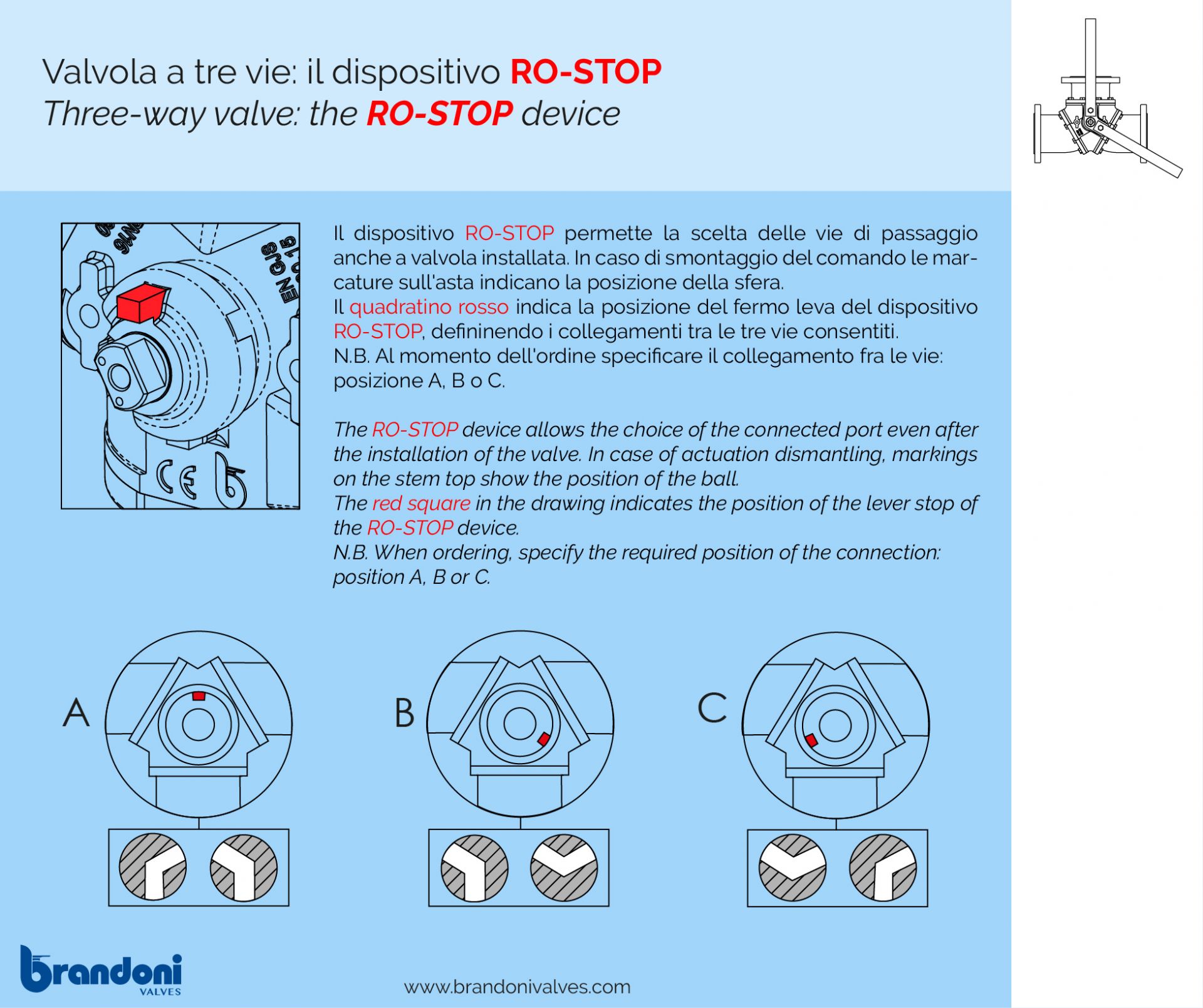

The red square in the drawing indicates the position of the lever stop of the RO-STOP device.
It indicates the allowed connection between the passage ways in that position, as shown in pictures A, B and C.
N.B. When ordering, specify the required position of the connection (position A, B or C).
